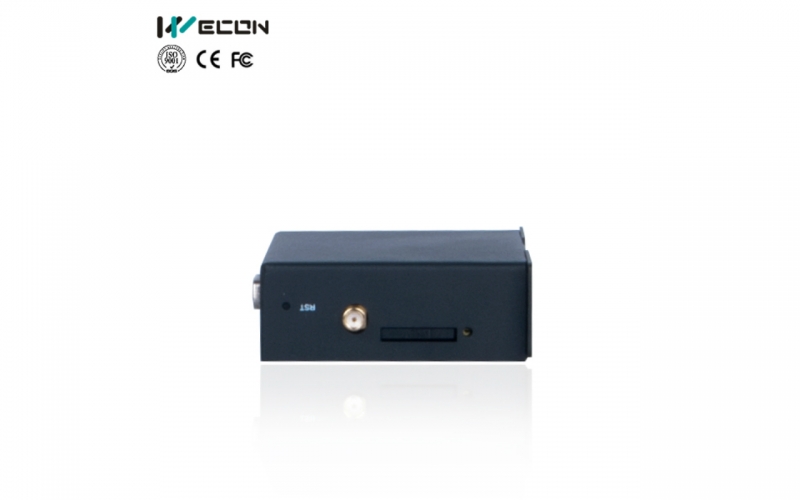

| Model | V-BOX E-00 | |||
| Hardware | OS | Linux | ||
| CPU | ARM9 300MHz | |||
| Storage | Flash | 128MB | ||
| RAM | DDRIII 128MB | |||
| SD Card | YES | |||
| I/O Ports | USB | OTG USB/DEVICE USB | ||
| Serial port | COM1:RS232,RS422/RS485 | |||
| Internet | 1个 | |||
| WIFI Module | N/A | |||
| 2G/3G/4G Module | N/A | |||
| Power | Power Supply | 24VDC(12~28VDC) | ||
| Power consumption | <10w | |||
| Dimension | Enclosure | Cold rolled plate | ||
| Dimension (W*H*D) | 118.6mm*73.2mm*26.8mm | |||
| Wall hanging dimension | 110mm*15.6mm | |||
| Weight(KG) | 0.26 | |||
| Operation Environment | Seismic Resistance | 10~25Hz(X、Y、Z direct 2G/30 minutes) | ||
| Storage Temperature | -30°C~70°C | |||
| Working Temperature | -10°C~60°C | |||
| Relative Humidity | 10~90%RH(Non-condensing) | |||
| CE Certification | CE marked | |||
| FCC Certification | FCC Class A | |||
| Software | Real-time data monitoring points | 200 | ||
| Alarm data monitoring points | 50 | |||
| History data monitoring points | 20 | |||
| History data storage days | 60 days | |||
| normal pass-through | YES | |||
| VPN pass-through | N/A | |||
| API | N/A | |||
| FOTA | N/A | |||
| Configuration import and export | N/A | |||
| Transmission resume | N/A | |||
V-net IIoT system:
1. Historical data and alarm data that stored in the cloud can be exported as needed.
2. Real-time data, real-time curve
3.GIS-based real-time data vector map
4. Cloud configuration function to realize cross-box configuration
5. Android/ios App access, desktop browsing
6. OPC access, HTTP developer interface
7. Remote database transmission
8. PLC remote monitoring and remote program download
