Tổng quan

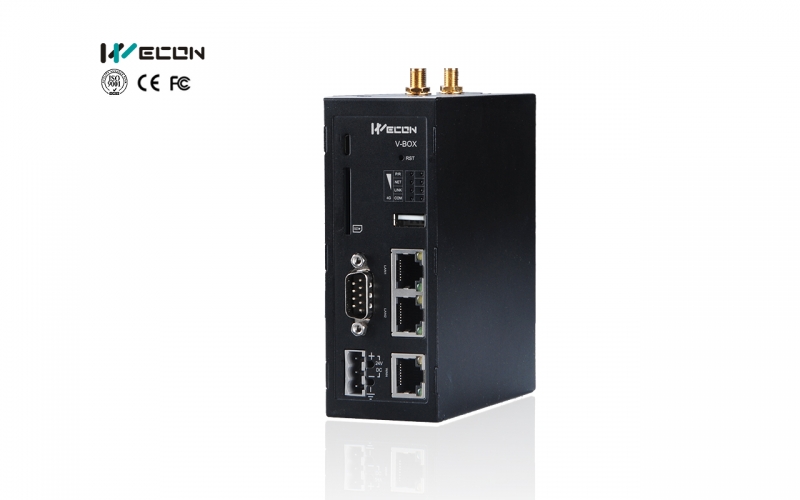

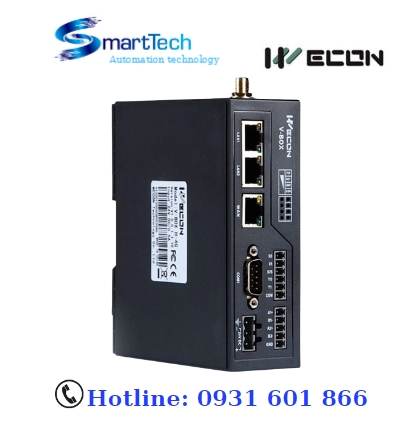

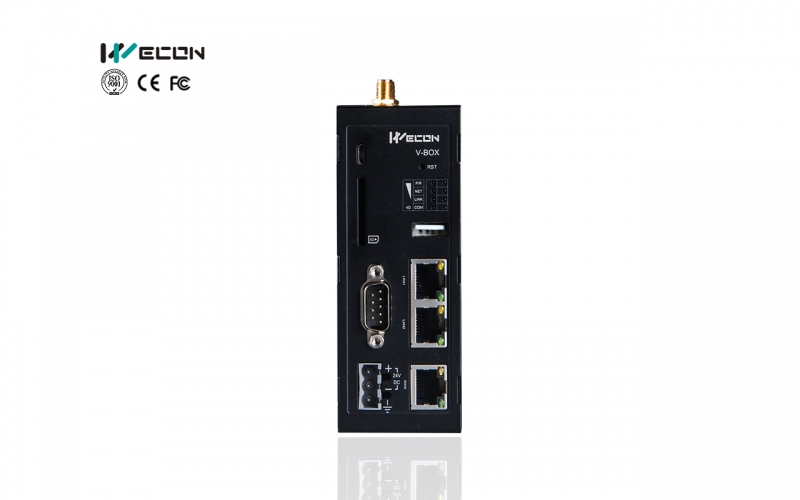

| Model | V-BOX S-NG | ||
| Hardware | OS | Linux | |
| CPU | Cortex A8 600MHz | ||
| Storage | Flash | 128MB | |
| RAM | DDRIII 128MB | ||
| SD Card | YES | ||
| I/O Ports | USB Host | USB 2.0 × 1 | |
| USB Client | DEVICE USB × 1 | ||
| Serial port | COM1:RS232,RS422/RS485 | ||
| Internet | 3 | ||
| WIFI Module | YES | ||
| 2G/3G/4G Module | YES | ||
| Power | Power Supply | 24VDC(12~28VDC) | |
| Power consumption | <10w | ||
| Dimension | Enclosure | Aluminum | |
| Dimension (W*H*D) | 118.0*114.5*44.3mm | ||
| Weight(KG) | 0.34 | ||
| Operation Environment | Seismic Resistance | 10~25Hz(X, Y, Z direct 2G/30 minutes) | |
| Storage Temperature | -30°C~70°C | ||
| Working Temperature | -10°C~60°C | ||
| Relative Humidity | 10~90%RH(Non-condensing) | ||
| CE Certification | CE marked | ||
| FCC Certification | FCC Class A | ||
| Software | Real-time data monitoring points | 600 | |
| Alarm data monitoring points | 300 | ||
| History data monitoring points | 100 | ||
| History data storage days | 180 days | ||
| normal pass-through | YES | ||
| VPN pass-through | YES | ||
| Http Interface | YES | ||
| Remote Update | YES | ||
| Configuration Backup | YES | ||
| Off-line Transmission | YES | ||
V-net IIoT system:
1. Historical data and alarm data that stored in the cloud can be exported as needed.
2. Real-time data, real-time curve
3.GIS-based real-time data vector map
4. Cloud configuration function to realize cross-box configuration
5. Android/ios App access, desktop browsing
6. OPC access, HTTP developer interface
7. Remote database transmission
8. PLC remote monitoring and remote program download
